EMC EMI Probe with PreAmp Kit for SDR | EMC EMI Antenna PreAmp | RTL-SDR Probe

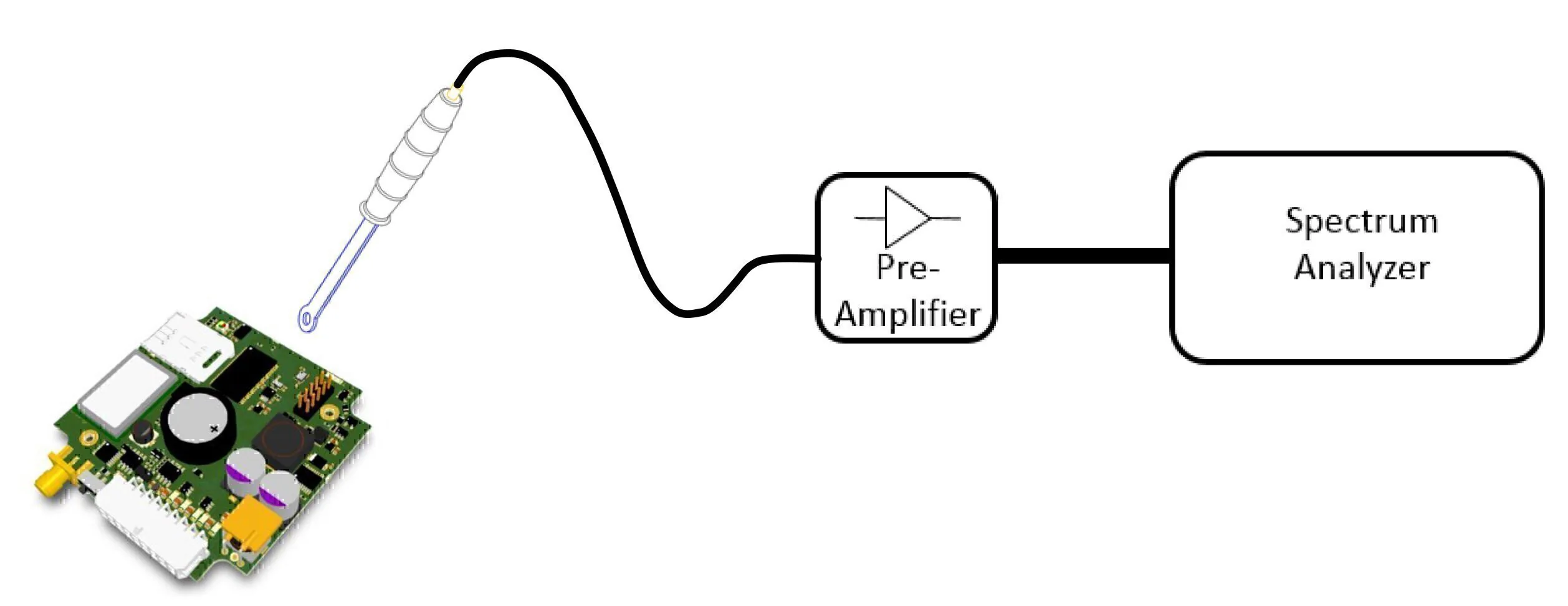

This EMC EMI probes kit includes a set of magnetic field and electric field probes for radiated emissions EMC pre-compliance measurements. The EMC probes are used in the near field of sources of electromagnetic radiation and serve to locate and identify potential sources of interference within the building blocks of electronic assemblies. The EMC probes act similar to wide bandwidth antennas, picking up radiated emissions from components, PCB traces, housing openings or gaps, and from any other parts that could be emitting RF. When used, these EMC probes are typically connected to a spectrum analyzer (Here we use a SDR radio as a simple spectrum analyzer).

Applications:

• Radiated EMC measurement
• RF immunity testing
• Contactless (load free) relative measurement of RF signal chains
• Contactless (load free) relative measurement of oscillators, modulators, etc.

Features:

• Low cost with reasonable performance
• Large frequency coverage: 9KHz to 3GHz with different probes
• Simple and Easy to work with your SDR radios
• Size:100 x 55/100 x 25/100 x 16/100 x 10/100 x 10mm

Package Includes:

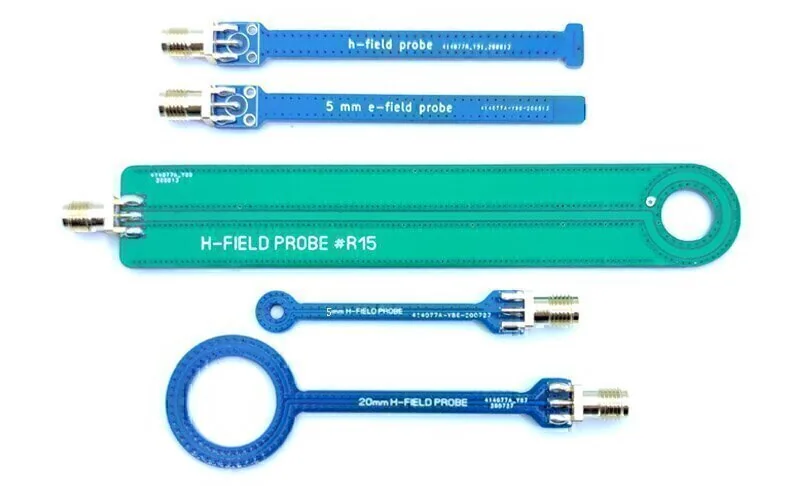

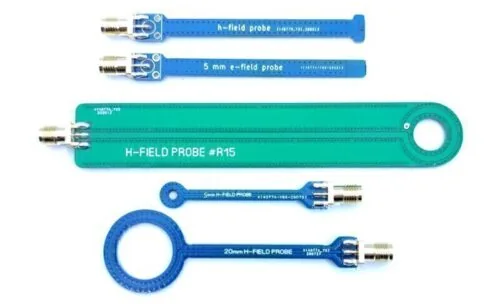

• 5 x Field Probe

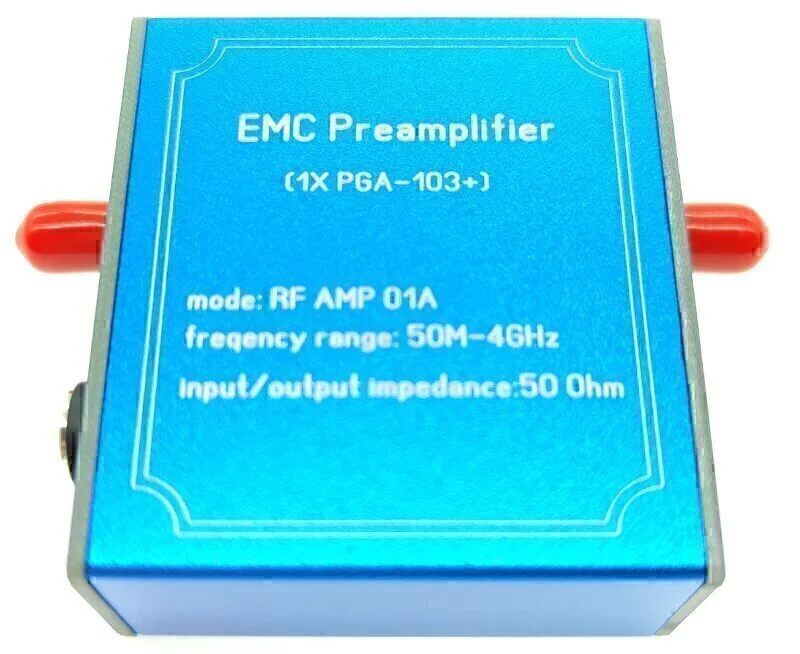

• 1 x RF Preamp

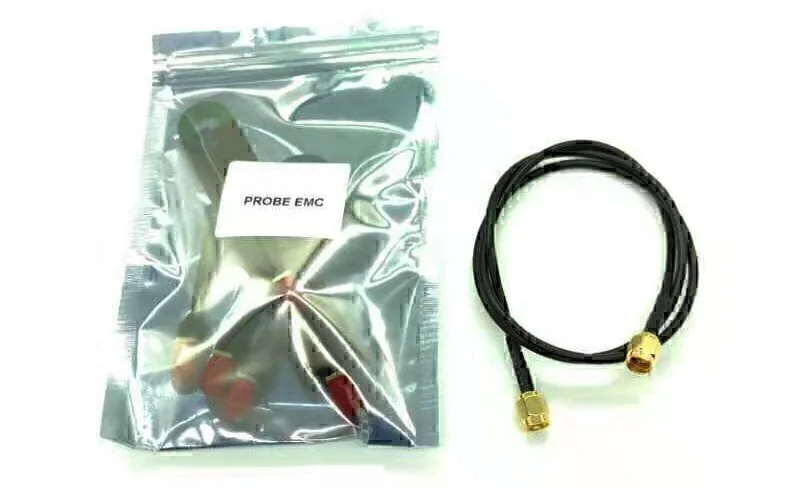

• 1 x RF Cable with SMA
