RX-888 MK2 HF/VHF/UHF Software Defined Radio | LTC2208 16Bit ADC with Direct Sampling | DDC DUC SDR

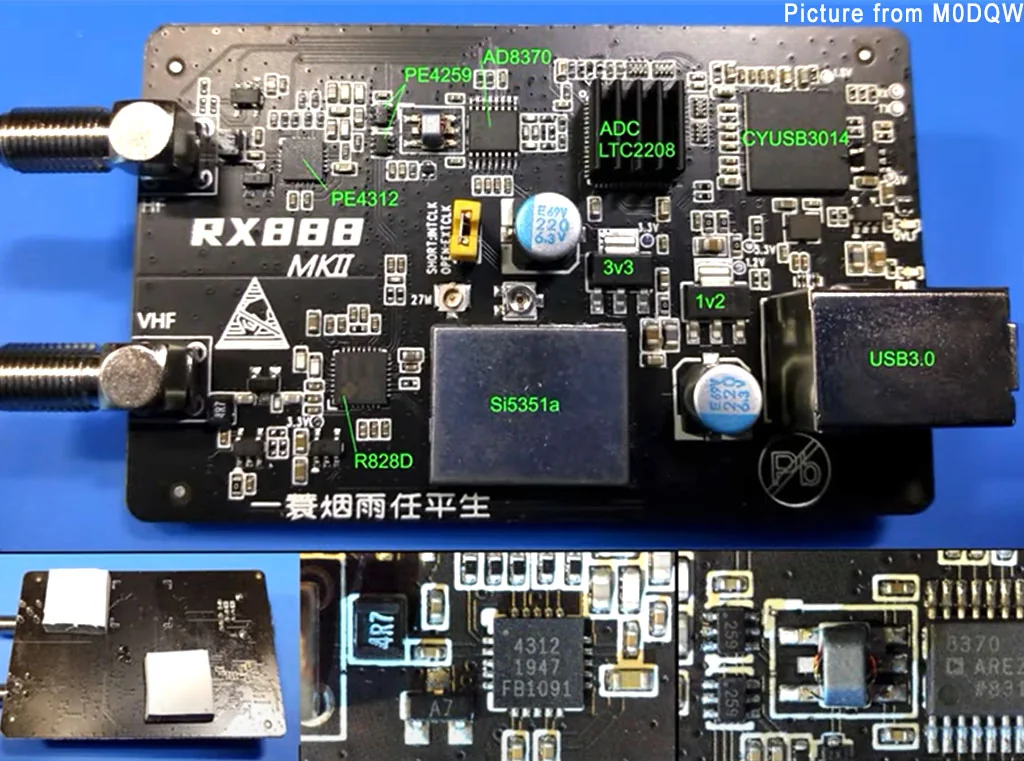

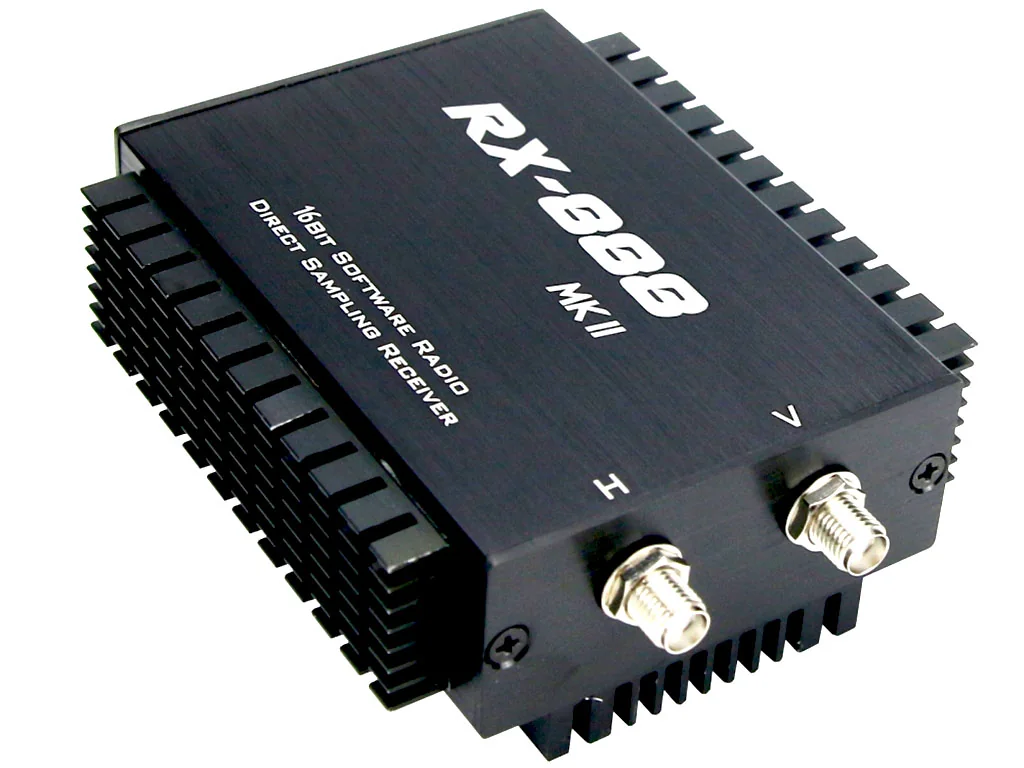

Want a SDR that could monitor the whole HF band? Try the RX-888 MK2 SDR receiver. The RX-888 MK2 SDR is a direct sampling SDR receiver with USB3.0 streaming for HF/VHF/UHF band. There are 2 SMA ports on the front, one is for HF and 6M band(1kHz-64MHz), and the other is for VHF/UHF(64 -1700MHz). For the HF and 6M band, the front end is a LTC2208 ADC for direct sampling, with a PE4312 for -32dB to 0dB attenuation, a AD8370 as the Variable Gain Amplifier(-11dB to +34dB). An LPF is also equipped on the HF front end for a better Image Rejection. The RX-888 provides a 64MHz on HF band with a high dynamic range. For VHF and UHF, the core is the R828D, which is a wideband tuner with a built-in 16bit ADC, and it gives a 10MHz bandwidth on VU bands.

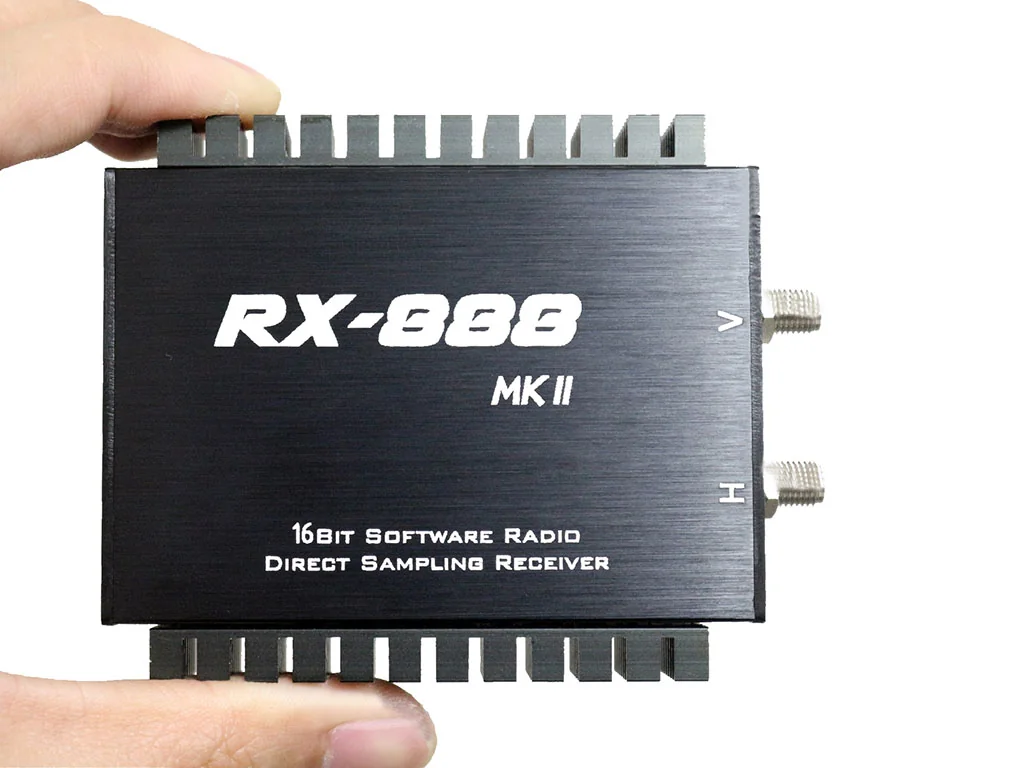

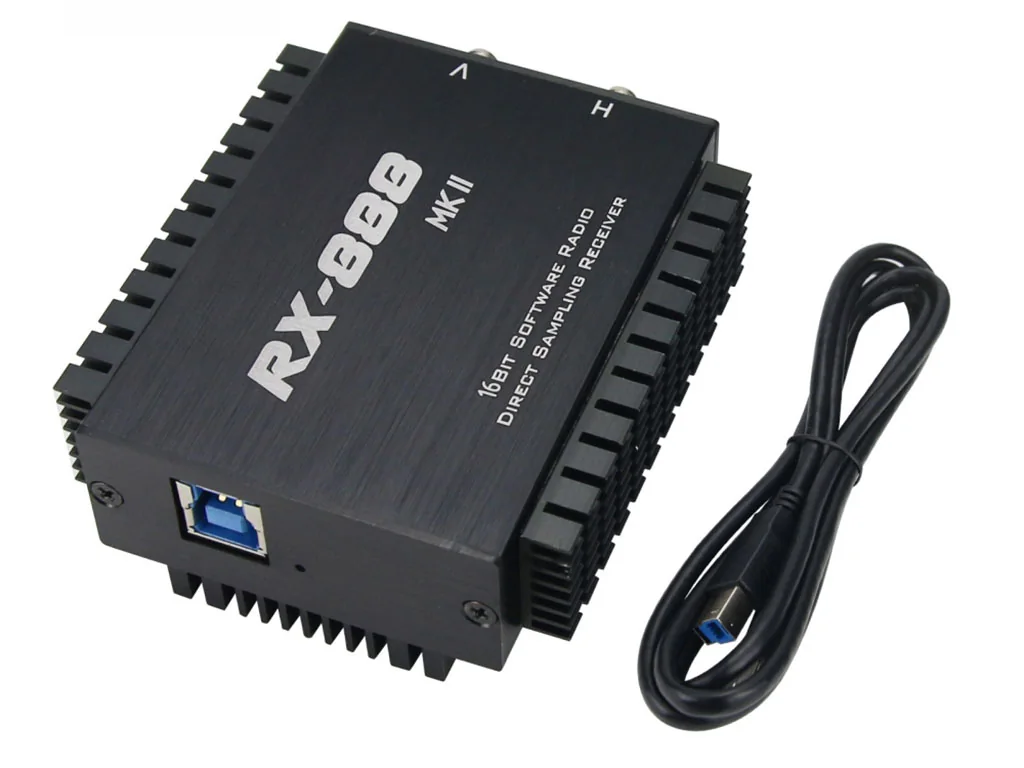

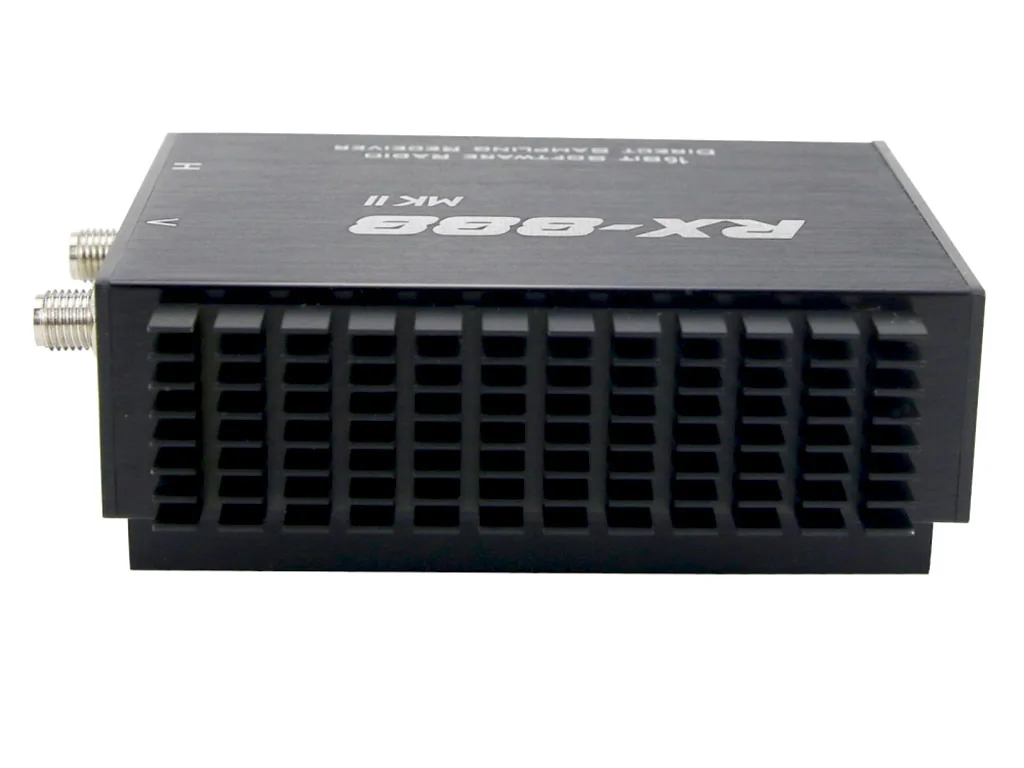

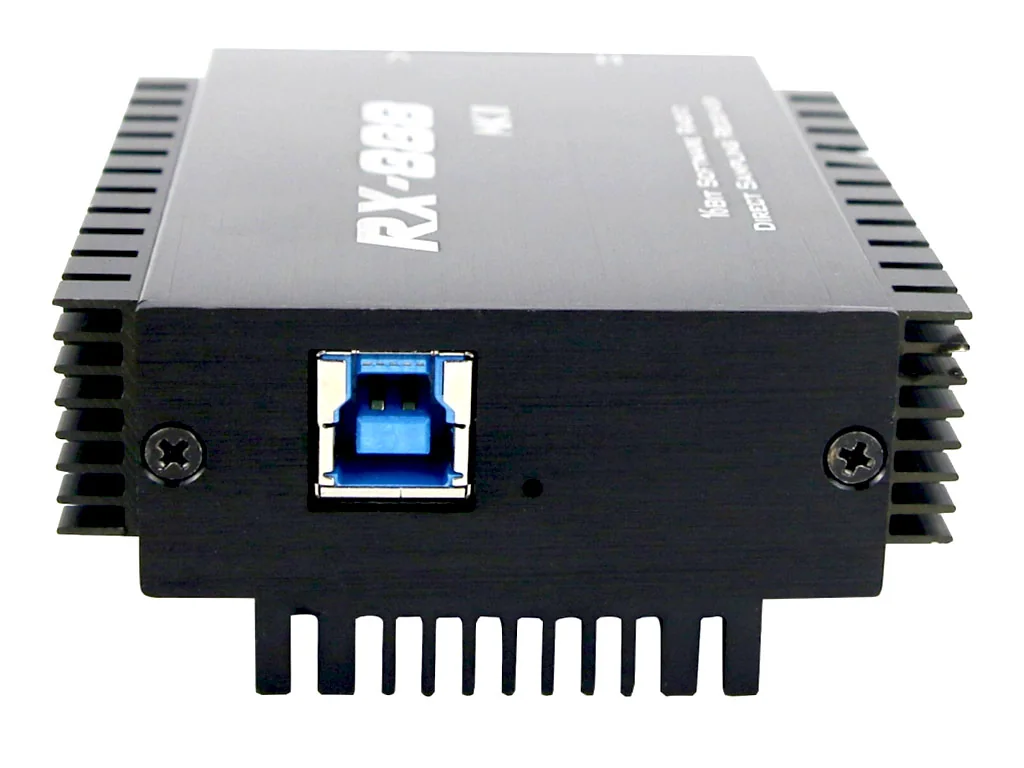

The RX-888 SDR receiver is housed in a black aluminum enclosure. In order to improve the heat dissipating, 3 heat sinks are used and sticked on the aluminum housing.

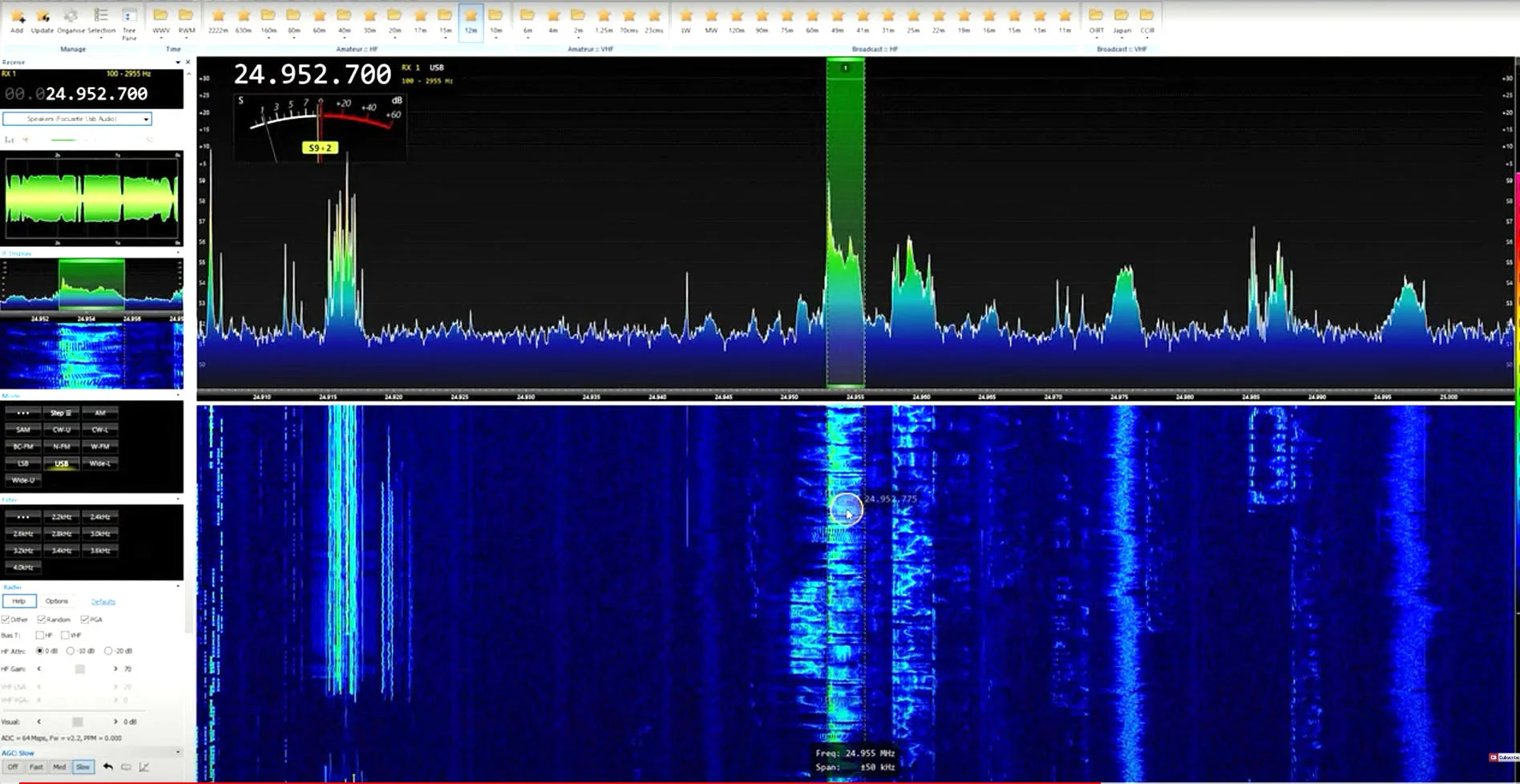

As for the software, the RX-888 is compatible with most of the commonly used SDR programs like HDSDR, SDR-Console, SDR#, SDR++, and an ExtIO_sddc.dll file is provided for the software control from SDR programs.

Click to Read More abut RX-888 MK2 SDR

Features:

• 1. LTC2208 16bit ADC@130MSPS
• 2. Dual RF Input for 1kHz-64MHz and 64-1700MHz
• 3. HF Real-time Bandwidth 64MHz
• 4, VHF Real-time Bandwidth 10MHz
• 5. 0.5ppm VCXO
• 6. ATT Adjustment Range -32dB to 0dB
• 7. VGA Adjustment Range -11dB to +34dB
• 8. External 27MHz Reference Clock Support (Jumper)
• 9. 3.3v Software Switched Bias-Tee HF/VHF Independent Control

Improvements from RX888 MK1:

• 1. LNA to VGA (Better Attenuation Control)
• 2. Enhanced 64MHz LPF (Improves Image Rejection)
• 3. R828D instead of R820T2(For 16bit ADC)
• 4. External 27MHz Reference Clock Selector
• 5. Tunable Attenuation in the HF Path up-to -31.5dB

Software Compatibility:

• 1. HDSDR
• 2. SDR Console
• 3. SDR#
• 4. SDR++

Specification:

• Working Frequency: 1kHz to 64MHz (HF+6M)
• 64MHz to 1.7GHz (VHF+UHF)
• ADC: LTC2208 16bit ADC@130 MSPS
• ATT Range (HF): -32dB to 0dB
• VGA Range (HF): -11dB to +34dB
• Frequency Stability: 0.5 ppm with a VCXO
• Bandwidth: 64MHz (HF)
• 10MHz (VHF/UHF)
• Working Current: 5V/2A
• PC Interface: USB 3.0 Type-B
• Size: 100(L) x 74(W) x 35(H) mm
• Weight: 180g

Resources:

• 1. ExtIO_file: https://github.com/ik1xpv/ExtIO_sddc
• 2. Download Driver

Package Includes:

• 1 x SDR Radio
• 1 x USB3.0 Type-B Cable
