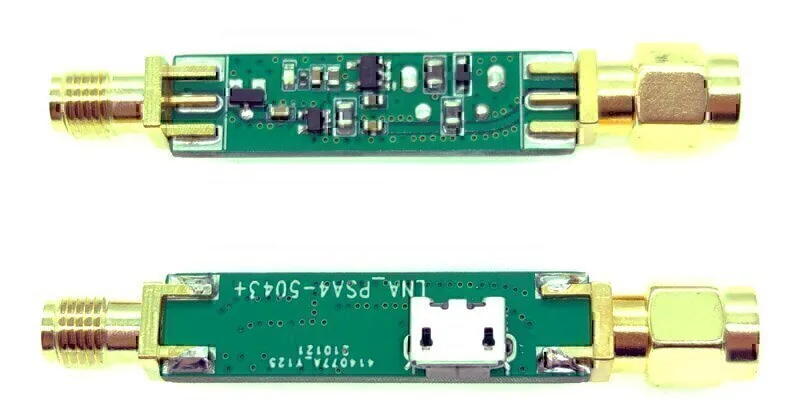

This is a general purpose PSA-5043+ based wideband LNA. Works from 50 MHz to 4 GHz with a noise figure of less than 0.75dB and a gain of 18.4dB @ 900 MHz. Requires bias tee power, but it could also powered by microUSB.

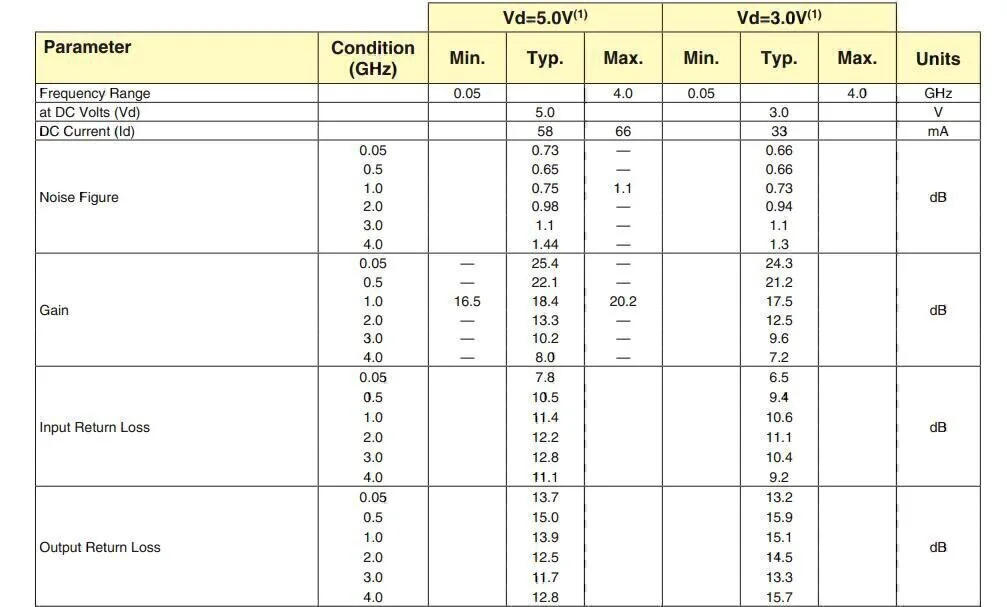

Specifications:
- Frequency range: 40MHz-4GHz
- Working voltage: 5V
- Working current: 33mA
- Gain: 18.4dB
